Ampoule Form D (Closed Ampoules)
Product Information:
- Produced from High-quality Borosilicate glass tubes type 1
- Available in clear and amber
- Form D (Closed Ampoule)
- CBR (Color Break Ring) or OPC (One Point Cut) opening
- Can be provided printed based on customer’s request
- Customized Ceramic printing up to two colors using heavy metal-free inks
- Uniform distribution of heat during annealing process, which remove stress from ampoules
- Production of Type D ampoule with incorporated positive pressure
- Code Rings (RC)
Printing:
- Code Rings(RC) up to 3 colors
- Text printing up to 2 colors
Break system:
- Color Break Ring (CBR)
- Open Point Cut (OPC)

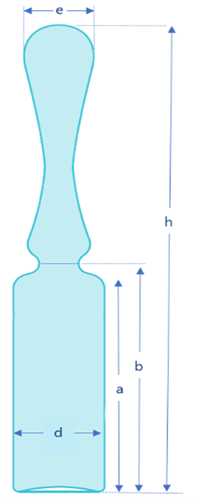

Size |
Body diameter( d ) |
Body height( a ) |
Height of constriction( b ) |
Total height( h ) |
Flared end( e ) |
| 1 ml | 10.75 | 21 | 25.5 | 70 | 10 |
| 2 ml | 10.75 | 33 | 37.5 | 83 | 10 |
| 3 ml | 12.75 | 35 | 39.5 | 89 | 10.5 |
| 5 ml | 14.75 | 41 | 46.5 | 95 | 12 |
| 7 ml | 14.75 | 61 | 66.5 | 115 | 12 |
| 10 ml | 17.75 | 55 | 62 | 112 | 13.5 |
| 20 ml | 22.5 | 65 | 76 | 126 | 13.5 |
| 25 ml | 22.5 | 80 | 91 | 141 | 13.5 |
| 30 ml | 22.5 | 95 | 106 | 156 | 13.5 |
